Includes a patented mechanism to fit various screen types and screens with special back structure
For screens weighing up to 55lbs/ 25 kg

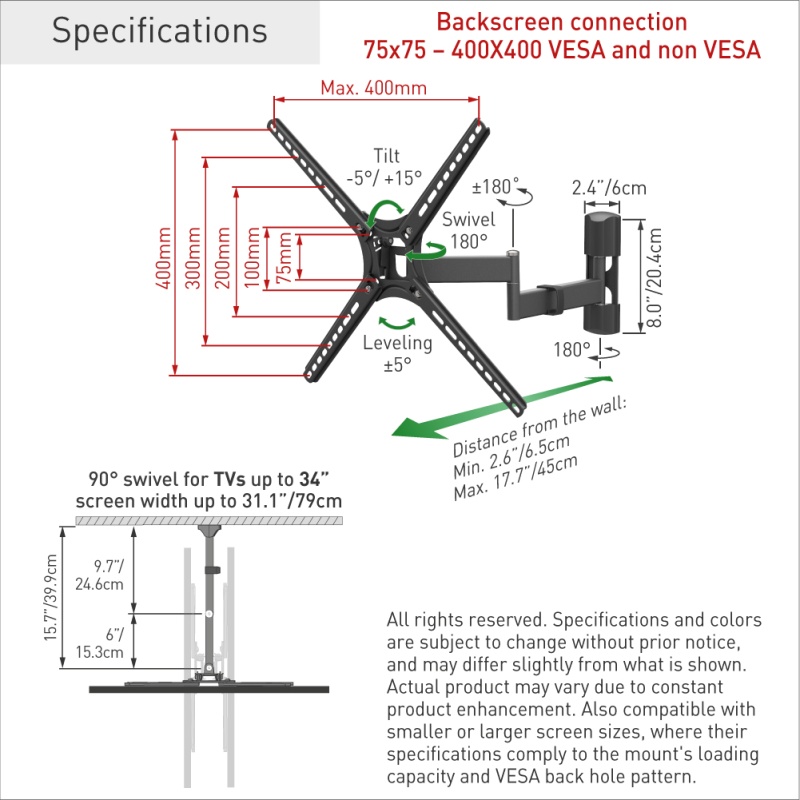

Distance from the wall: min 6,5cm, max 45 cm

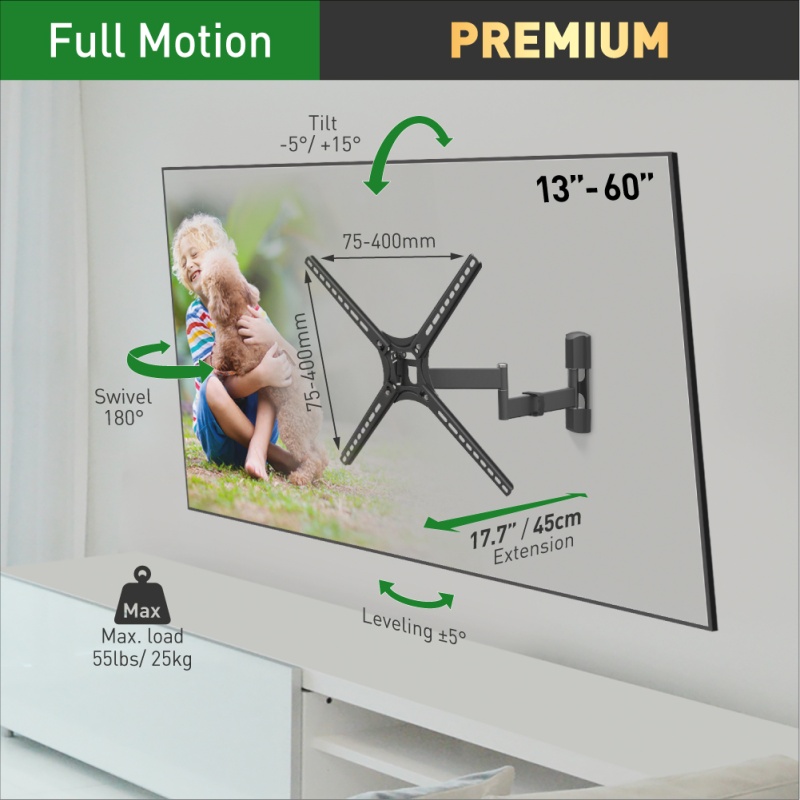

The mount has 3 pivots which: rotate near the wall 180°, swivel near the screen connection plate 180° in addition to a tool-free tilt from 0° till 15° and a +/-5° leveling after the installation
Fits TVs with VESA (Bracket Mounting Holes Patterns) 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 300x400, 400x200, 200x400, 400x300, 400x400 mm and non-VESA up to 400x400 mm
Safety tested with a load of 220lbs/ 100kg
Also compatible with larger screen sizes, where their specifications comply with the mount
