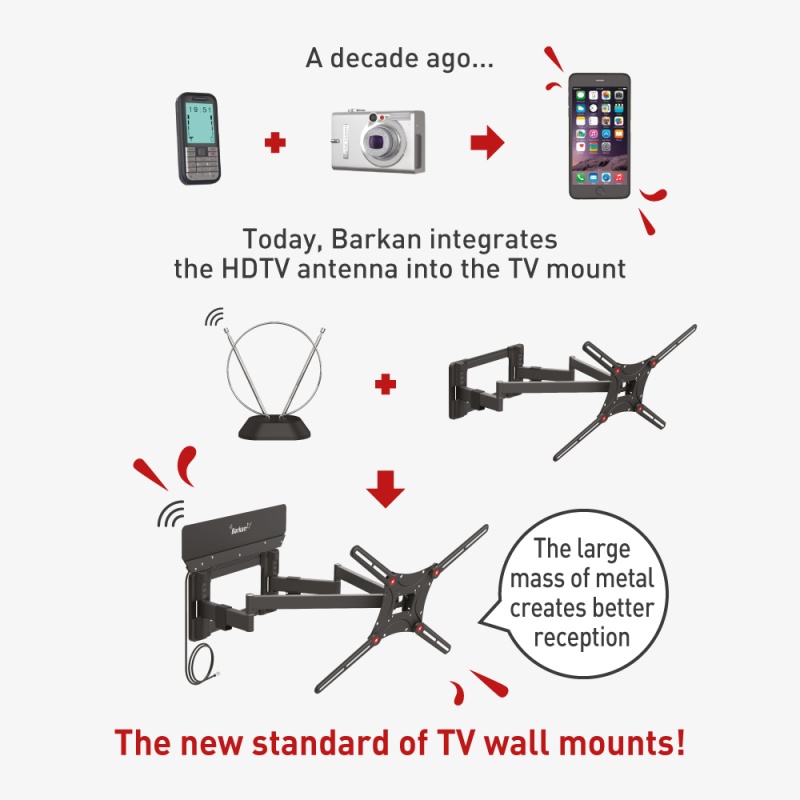

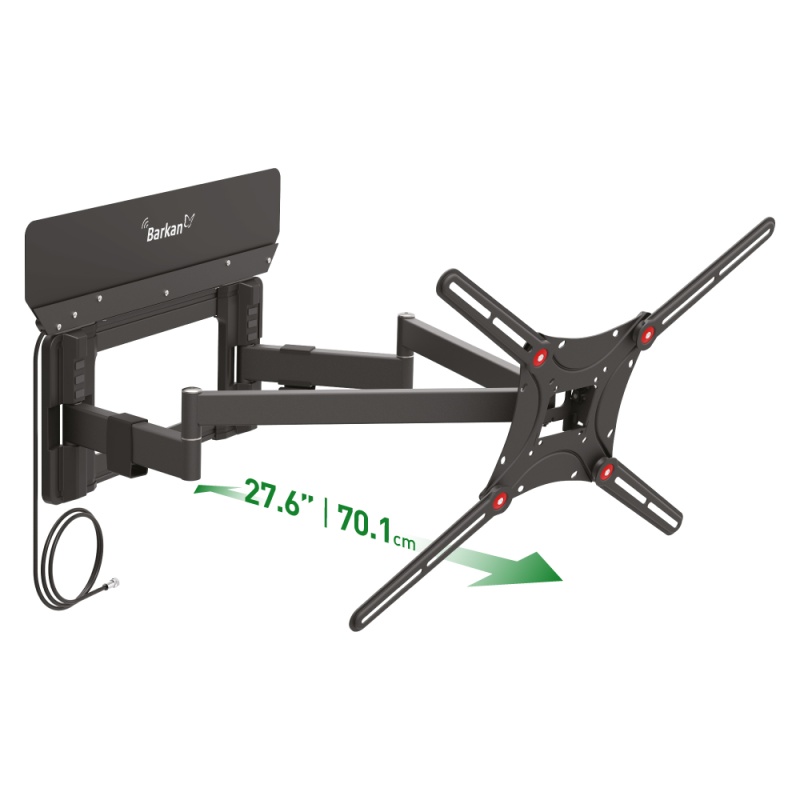

World’s 1st TV mount with integrated HDTV indoor antenna.
-
Eliminates the trouble of using 2 separate devices and creates a clean look.
-
The large mass of metal required for the TV mount creates better reception than regular antennas.
-

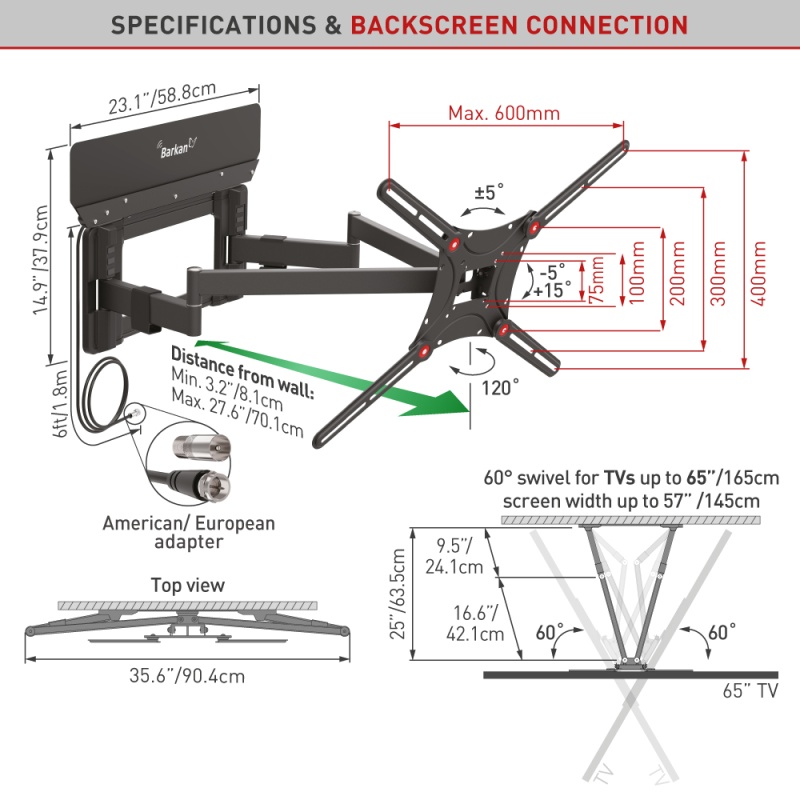

Exceptionally long and stable wall mount with a double arm, allows 60° swivel for TVs up to 65"/ 165cm and 90° swivel for TVs up to 43"/ 109cm (width up to 39"/ 99cm).
-
Includes a patented mechanism to fit various screen types and screens with special back structure.
-

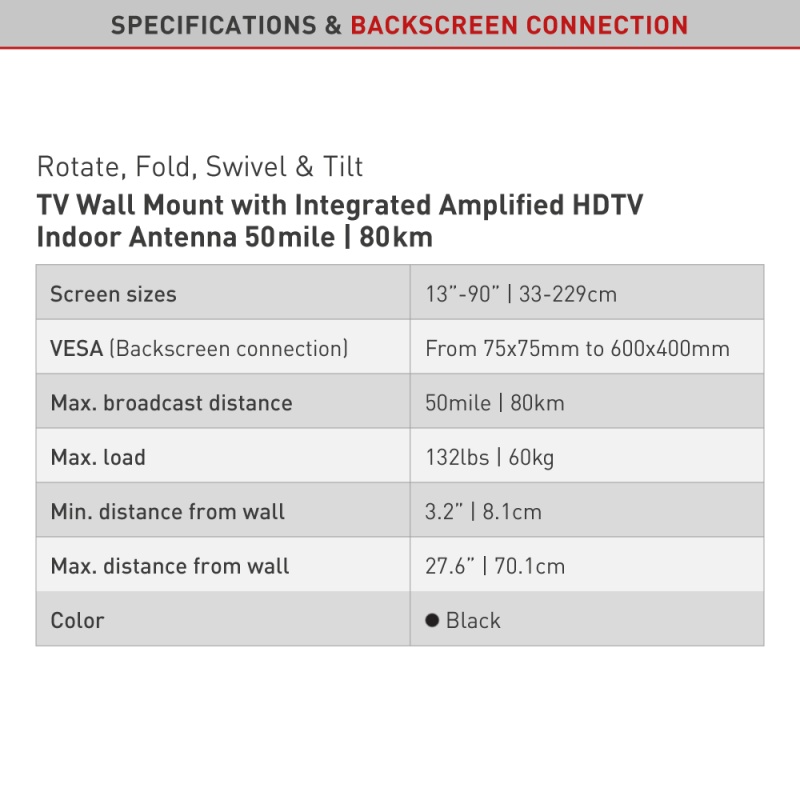

For screens weighing up to 132lbs/ 60kg.
-
Minimum distance from the wall: 3.2" / 8 cm.
-
Maximum distance from the wall: 27.6" / 70 cm.
-

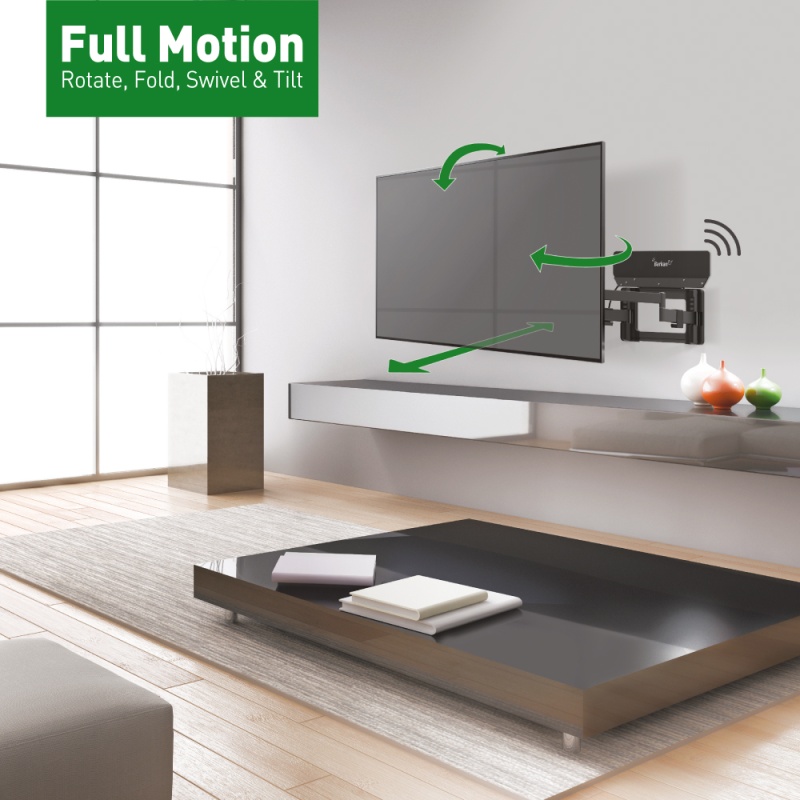

The mount has 3 pivots which: rotate near the wall 180°, fold 360°, swivel near the screen connection plate 180° in addition to a tool-free tilt from 0° till 15° and a +/-5° leveling after the installation.
-
Fits TVs with VESA standard (Bracket Mounting Holes Patterns) 75x75, 100x100, 100x200, 200x100, 200x200, 200x300, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 600x400 mm and non-VESA up to 600x400 mm.
-
Safety tested with a load of 465lbs/ 211kg.
-
Also compatible with larger screen sizes, where their specifications comply with the mount.
-
Color: black.
-
Please check the list of included screen-connection screws in the assembly instructions. If your screen requires different screen-connection screws, please purchase them in your local hardware store.
-
Antenna Data:
-
Max range: 50mi/ 80km.
-

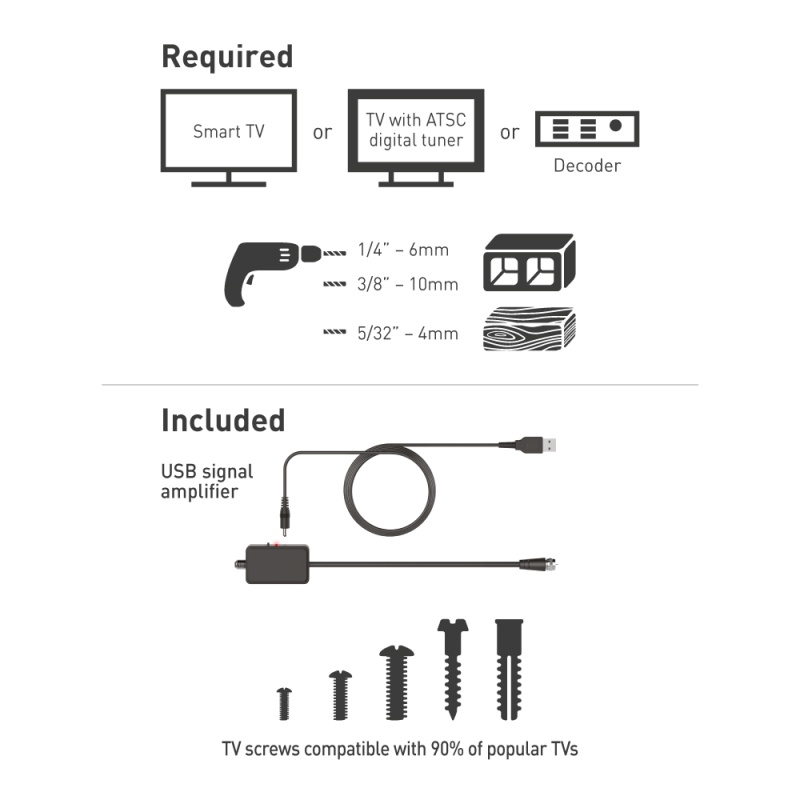

Includes a USB signal amplifier.
-
Has 360° reception.
-
Requires a smart TV/ TV with ATSC digital tuner or a decoder.
-
Supported Frequencies: VHF - 174-230MHz, UHF - 470-862MHz, fits all free HDTV broadcast signals.
-
Gain: 25dB.
-
Impedance: 75Ω.
-
Cable length: 6ft/ 1.8.
-
Insert the antenna’s USB cable into the TV’s USB port. If no channels are found or if the red indicator light does not turn on, it is possible that the voltage of the TV’s USB port is not high enough. In such a case, connect the antenna’s USB cable to a wall electrical socket using a standard adapter with a maximum voltage of 5V and a maximum current of 200mA.
- The TV mount has a Lifetime Warranty, the antenna has a 2 year Warranty.
